Our ADA / IBC Accessibility Ramp Systems
Our ADA / IBC Wheelchair Ramps are strong and lightweight thanks to their all-aluminum patented locking system. ADA ramp systems are comprised of modular ramp sections, a ramp wedge and the landing platform. The ramp sections and platforms are equipped with sliding legs that make leveling and adjusting a breeze. Ramps can be ordered in numerous configurations that support many one-story thresholds. Our ramps meet ADA/IBC requirements. Optional canopies are available for ramp system decking, ramp sections and ramp wedges.
No loose nuts or bolts to fuss with, installation, storage, and redeployment of your ramp has never been easier.

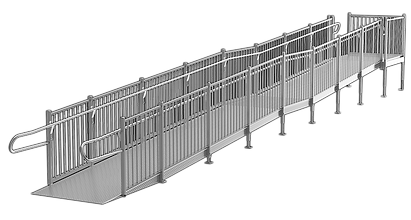

Single Run Accessibility Ramp Systems
Single Run Accessibility Ramp Systems are intended to meet the ADA / IBC requirements for buildings with a entry-way threshold of 30" or less. Our Ramp Systems normally come in 5" increments but we offer many options to meet any threshold up to 30" with our Single Run Ramp Systems. We also offer Multi- Run Ramp Systems for buildings that are more than 30" off the ground.
Single Run ADA Accessibility Ramp Systems
-
MODEL ADAWCR
-
30' Ramp system for building access up to 30" off the ground.
-
MODEL ADAWCR-20
-
20' Ramp system for building access up to 20" off the ground.
-
MODEL ADAWCR-25
-
25' Ramp system for building access up to 25" off the ground.
-
MODEL ADAWCR-15
-
15' Ramp system for building access up to 15" off the ground.
-
MODEL ADAWCR-10
-
10' Ramp system for building access up to 10" off the ground.
All of our Ramp Systems can be installed with a pitch of 12:1
All Ramp Systems can be ordered to conform to California Building Code (CBC)
ADA requires multiple ramp runs when ramps exceed 30" rise, Multi- Run Systems
Multi - Run Accessibility Ramp Systems
For when building access goes above 30", we offer Multi- Run Ramp Systems. Multi- Run Ramps come in Turning, Switchback, and Intermediate Rest configurations. Ramp Systems can be assembled on your site to avoid obstacles, navigate to sidewalks and even to provide an extra resting platform for their occupants. Modular design of our Ramp Systems allow for many layouts that can reach buildings up to 60" off of the ground.
Switchback Ramp Systems
Intermediate Rest Ramp Systems
Multi - Run Ramp Text
Turning Ramp System
Multi - Run ADA Accessibility Ramp Systems
-
MODEL ADAWSB-35
-
35' Ramp system for building access up to 35" off the ground.
Switchback Ramp Systems
Intermediate Rest Ramp Systems
Turning Ramp Systems
-
MODEL ADAWSB-40
-
40' Ramp system for building access up to 40" off the ground.
All of our Ramp Systems can be installed with a pitch of 12:1
All Ramp Systems can be ordered to conform to California Building Code (CBC)
More options available from 20" up to 60" building access off the ground
-
MODEL ADAWIT-35
-
35' Ramp system for building access up to 35" off the ground.
-
MODEL ADAWIT-40
-
40' Ramp system for building access up to 40" off the ground.
-
MODEL "ADATURN-35"
-
35' Ramp system for building access up to 35" off the ground.
-
MODEL "ADATURN-40"
-
40' Ramp system for building access up to 40" off the ground.
Turning Ramp Systems can be set up for Left, Right or Straight layouts.
More options available from 20" up to 60" building access off the ground
More options available from 20" up to 60" building access off the ground
Accessibility Ramp Decking Canopy Systems
The modular design of our ADA Canopy Systems allows for compatibility with Stairs, Ramp and Decking Platforms. Re-use the same components in deferent layouts and configurations for many years.
ADA Decking Canopy Systems
-
MODEL ADA Canopy
-
For 62" x 62" ADA Decking
-
MODEL CBC Canopy
-
For 62" x 84" ADA Decking
Our ADA Canopies can be used with multiple optional configurations of our Ramp System's Decking Picket Guards enabling their use in many different applications.
Built in Gutter and Downspout allow our Canopy Systems to protect the system's occupants from the weather while maintaining a minimalist look.
Use our ADA Canopies with our any of our ADA Ramp Systems.
We offer CBC variants for use with our CBC decking
Our ADA / IBC Ramp Systems are compatible with our line of ADA Canopy Systems. ADA Canopies feature a long-lasting and lightweight construction designed to protect the building entry from the weather. These Systems feature a built-in Gutter and Downspout cleverly concealed within the structure of the canopy and columns of the System. Our Canopies can be added to our Ramp and Decking Systems with simple Kits. Canopy Systems can also be removed, stored and reinstalled later to other Systems in our ADA product line.
Accessibility Ramp Decking
Our Ramp Systems are designed to work in conjunction with our ADA Modular Decking Systems. Use our Ramp Systems with many different configurations of decking to easily create the layout necessary for your building and its application.
ADA / IBC Decking and View Decks
-
MODEL ADAPFK
-
4 Pocket 62"x62" Platform with Picket Guards
-
MODEL ADAHFK
-
4 Pocket 62"x32" Platform with Picket guards
We also offer different sizes of decking platforms to help fill the gaps in your decking layout. Need just a little more room, our ADA Half Platform (62"x30") can be used to give your decking layout more area when spacing your egress systems away from swinging doors or AC systems.
Fine Tune your Decking Layout...
Need to add a Stair or Ramp System but you don't want handrails getting in the way of the clear space of your decking layout ? 18"x62" Adapters can Add an attachment point for Stair and Ramp Systems while also allowing for each system's handrails to be contained with-in the adapter, not encroaching on the clear space required by ADA.
